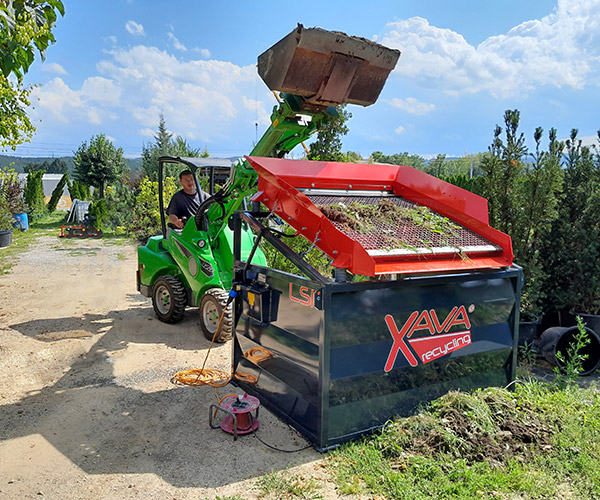

Vibrating Screen LS16

Weight: 490 kg (incl. lifting device)
Vibration motor: 0.62 kW, 1,500 RPM
Connection: 400 V
Height: 1,820 mm
Footprint: 1,850 mm x 1,380 mm
Screening surface: 1,400 x 1,250 mm


With the XAVA LS16 screening machine, different materials can be screened and recycled. With the right choice of screening cloth, everything from compost to wood chips, soil, gravel, sand, building rubble, brick remains and similar materials can be screened and thus separated cleanly. The separated material can be reused immediately. The LS16 vibrating screen is designed in such a way that the screened material can fall into a wheelbarrow or a box, which enables easy further transportation.

  • SIMPLES OPERATION – 400V socket connection
  • CLEAN – purely electric drive, no site contamination due to damaged hydraulic lines or similar
  • FLEXIBLE – separation of various materials thanks to the use of different screen meshes
  • FAST MANOEUVRING – by means of a lifting device or chains
  • LOW MAINTENANCE – screws must be checked, maintenance-free bearings on the vibration motor
  • EASY TRANSPORT – thanks to its low weight – with a standard car trailer
